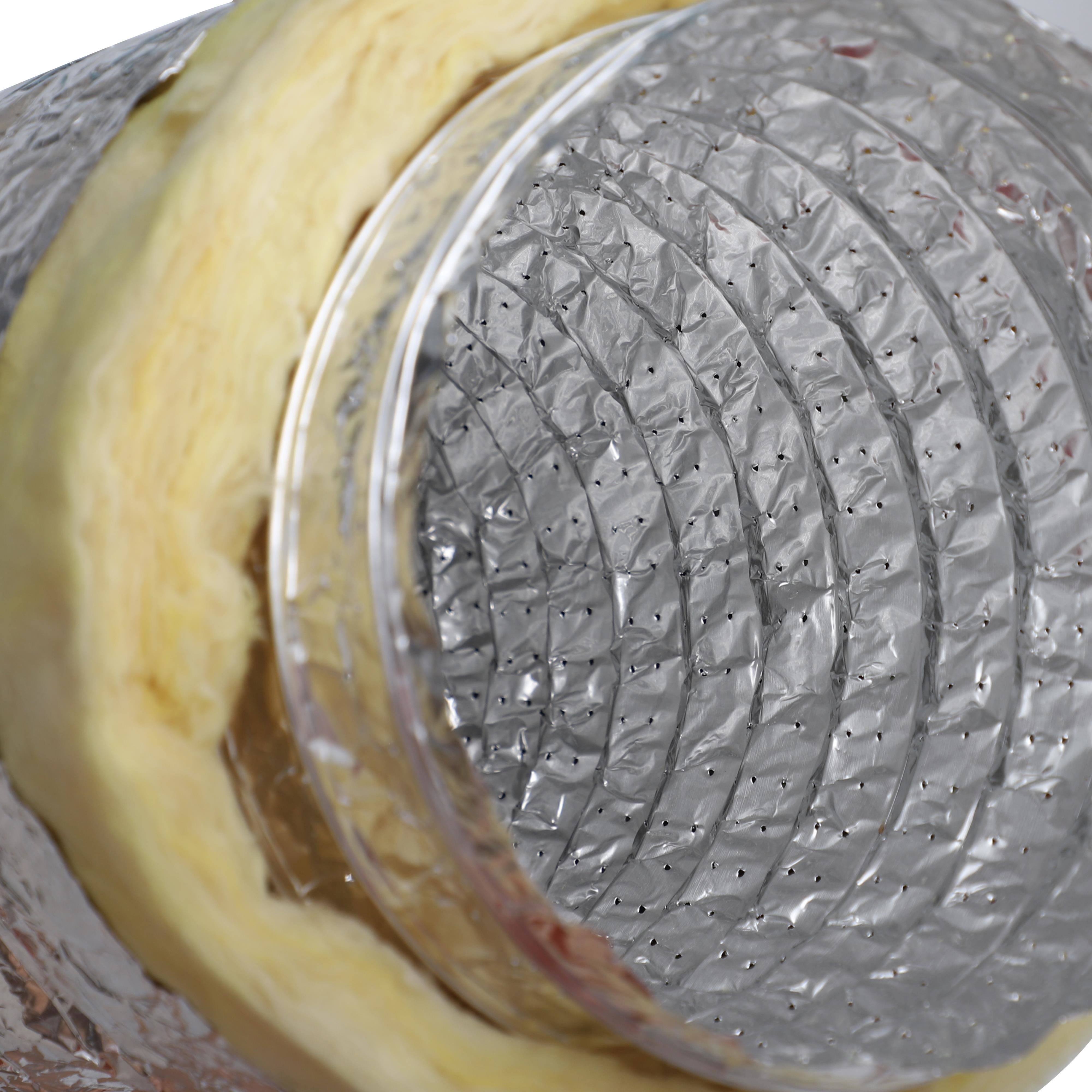

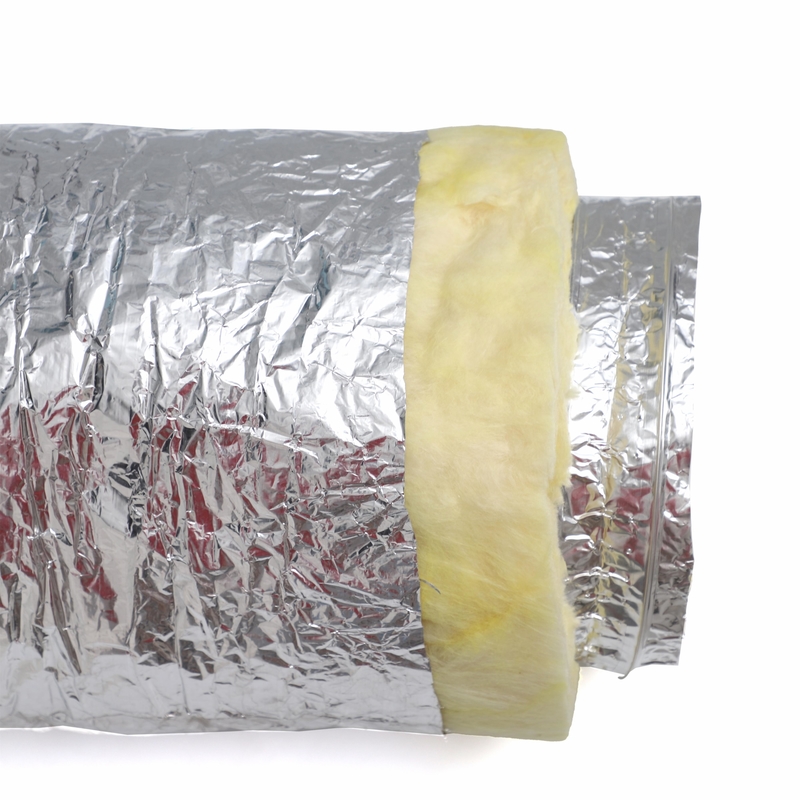

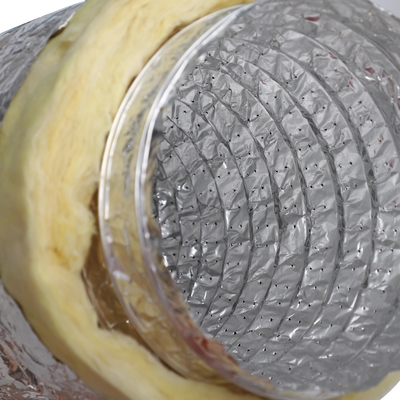

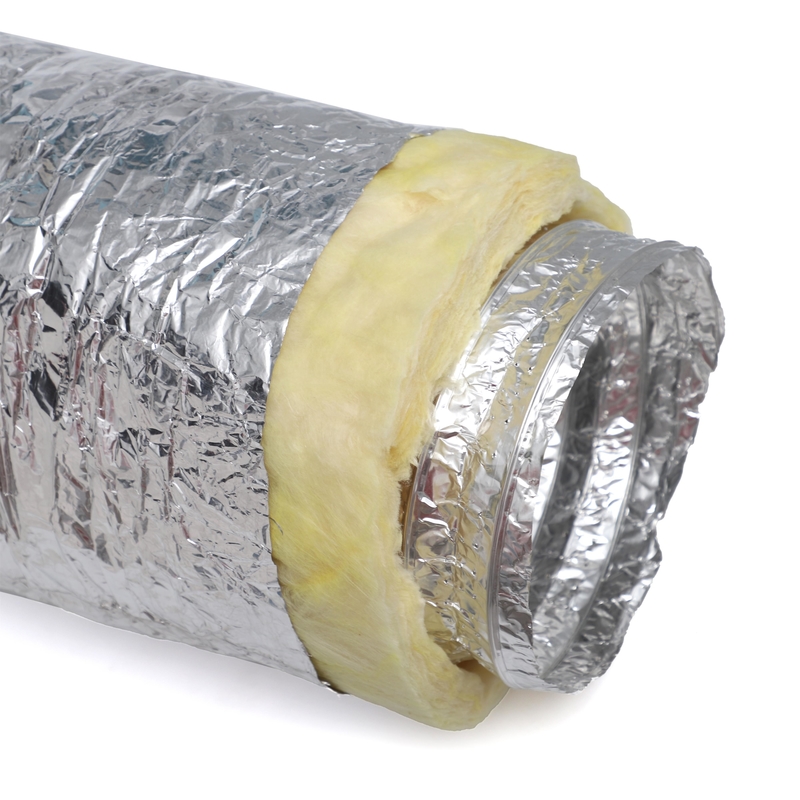

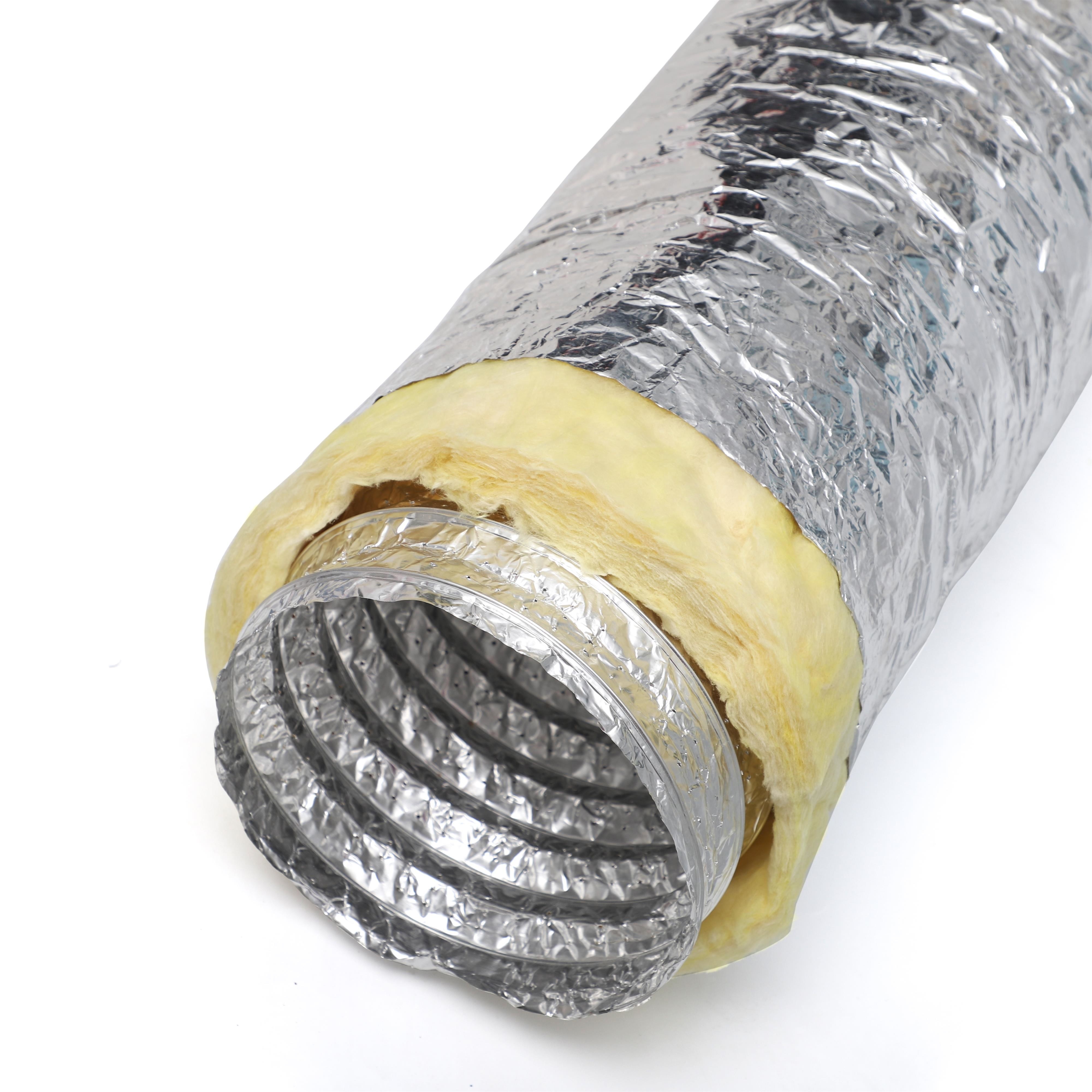

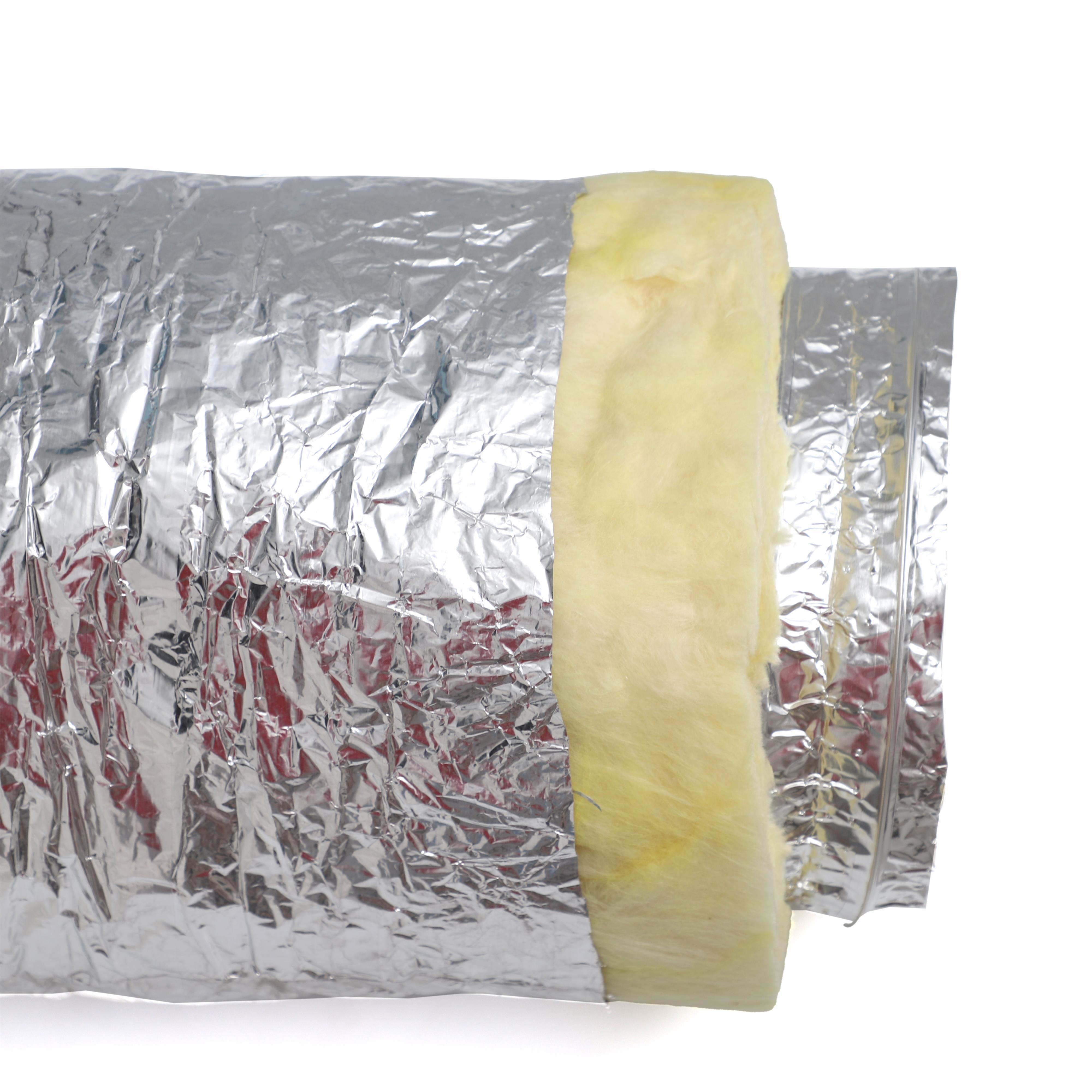

Product Introduction Of The Insulated Flexible Duct
Insulated flexible duct has high and low temperature resistance, and remains good flexibility without delamination
in a wide temperature range.
The duct is made up of a aluminium/polyester film laminated core, incorporating a coated mechanical spring wire
helix and solvent based adhesive. The duct is constructed in a way that allows it to maintain its full diameter through
out bends. When correctly installed, it offers low resistance to air flow.
Product Parameter Of The Insulated Flexible Duct
| PROPERTIES |
VALUE |
| DIAMETER RANGE |
80 ~ 610mm (3〞~ 24〞) |
| TEMPERATURE RANGE |
-30 ~ +250 °C |
| VELOCITY OF AIR FLOW (MAX.) |
30 m/s |
| WORKING PRESSURE |
2500 Pa/3000 Pa |
| BENDING RADIUS |
0.54*D+25mm |
| THICKNESS OF FIBERGLASS INSULATION |
25-50mm |
| DENSITY OF FIBERGLASS INSULATION |
16~32kg/m3 |
| STANDARD LENGTH |
5 ~ 10m |
Product Feature and Application Of The Insulated Flexible Duct
The Insulated Flexible Duct
● Helpful for reducing heat & cool loss and preventing condensation
● Flexible duct covered by fiberglass insulation and aluminum/ polyester laminate jacket
● Good fire resistance and pressure resistance along with good thermal insulation
The Insulated Acoustic Flexible Duct Feature
● Slightly perforated inner core covered by fiberglass insulation and aluminum/ polyester laminated outer jacket
● Good fire resistance and acoustic performance along with good thermal insulation and flexibility
● Helpful for reducing heat & cool loss and preventing condensation
Production Details Of The Insulated Flexible Duct
Packing:
FAQ
Q: Can you serve free samples and how can I get them?
A: Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your test
Q: Can this be used for a range hood exhaust?
A: Suitable for use with heating, ventilation and air conditioning systems.
Q: Can the duct be cut to length as needed?
A: Yes, sure.
Q: Where can the duct be used for?
A: Including heating and A/C systems and some venting.
Q: What are the benefits of your flexible ducts?
A: Made of high quality aluminum which is flame retardant, they are flexible and easy installation.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we cooperation with distributors at home and abroad, we have several years manufacturing and overseas sales experience.
