প্যাটার্ন: | বাটিক | পণ্য চকচকে কোণ: | 90 ° |
---|---|---|---|
ইঞ্জিনের আকার: | এসটিডি | পার্ট নং: | 3977530 |
সরবরাহ ভোল্টেজ: | ২০০-৬০০ ভোল্ট, ৫০-৬০ হার্জ | ক্যাটালগ বর্ণনা: | এয়ার মোটর: এক্সচেঞ্জ E2C068N দেখুন |
উপযুক্ত: | পরিবার | স্ট্রোক: | 8.5 ইন |
ভোল্টেজ রেটিং এসি: | 250 VAC | লেন্স উপাদান: | রৌপ্য |
বৈশিষ্ট্য: | কাস্টমাইজড | আকারের ধরণ: | নমুনা আকার |
পুনরাবৃত্তিযোগ্যতা: | 0.03 মিমি | ওজন: | 1 কেজি |
বিভাগ: | সুইচ সীমা সুইচ | ||
বিশেষভাবে তুলে ধরা: | fireproof rubber insulation pipe,hot water pipe insulation,cold water pipe insulation |

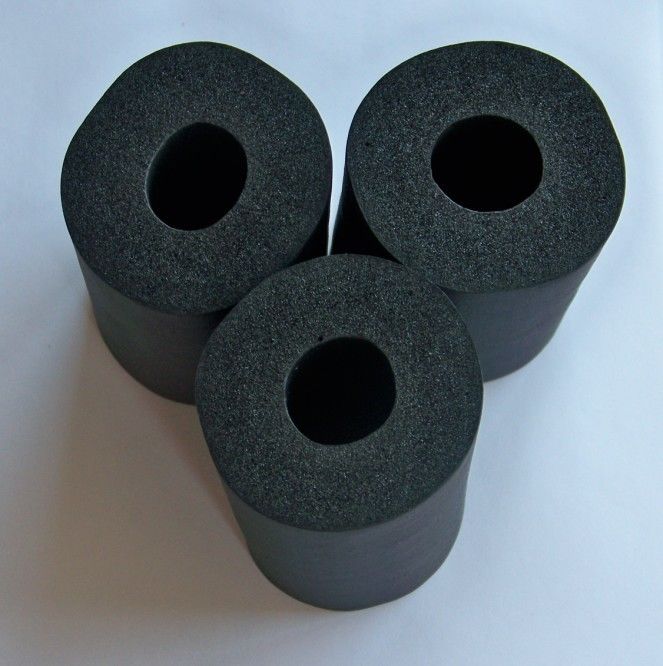

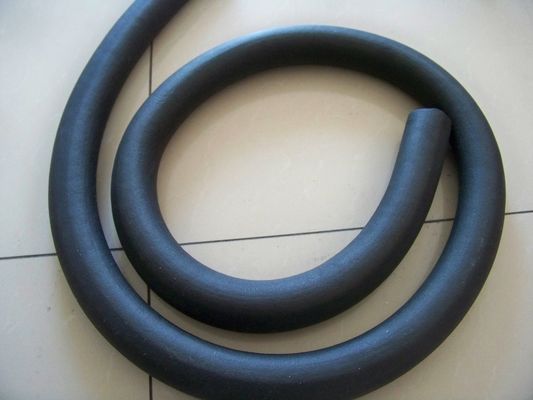

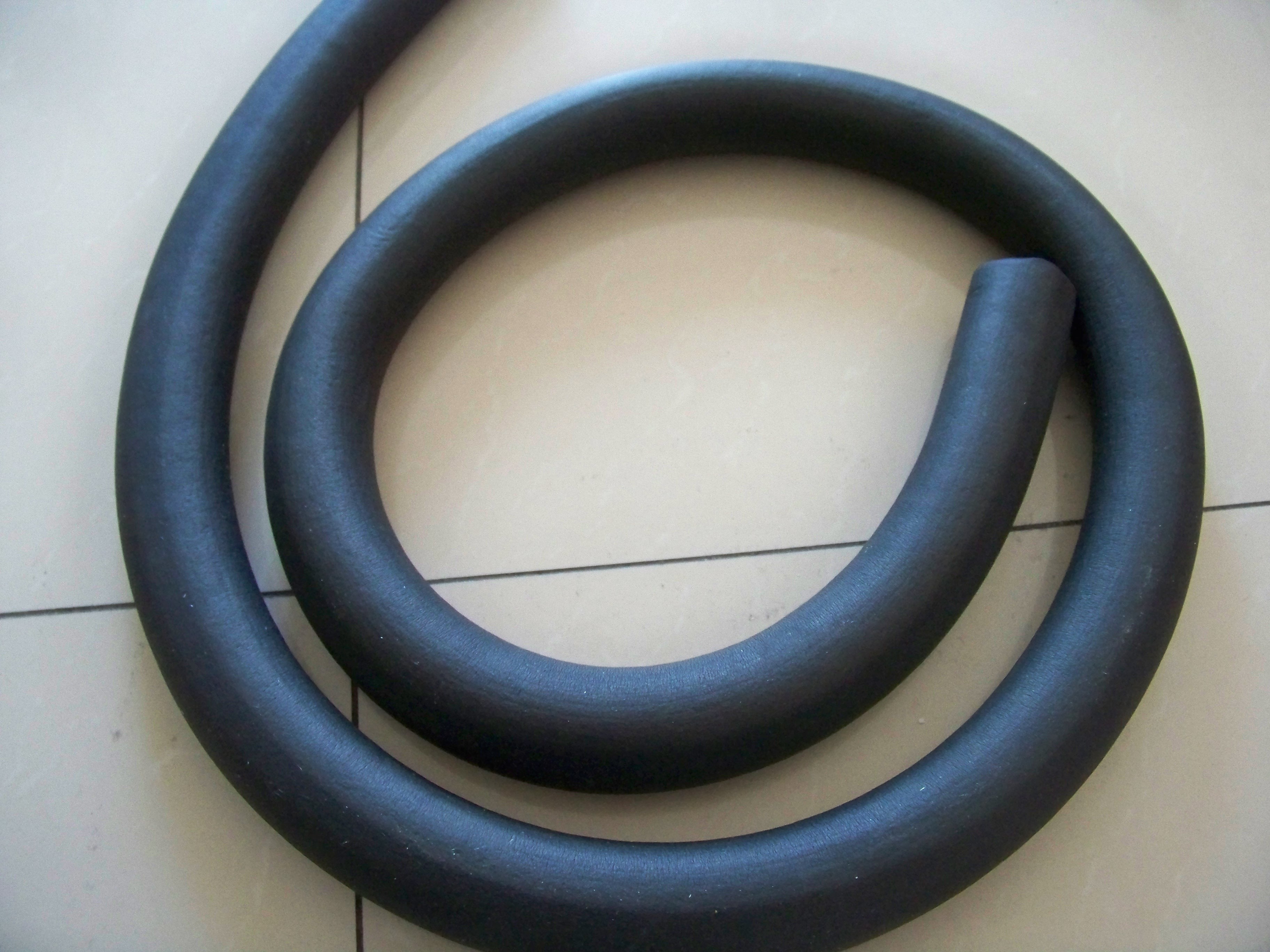

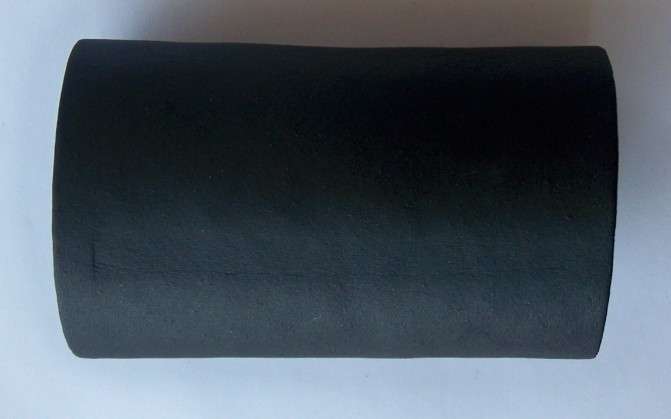

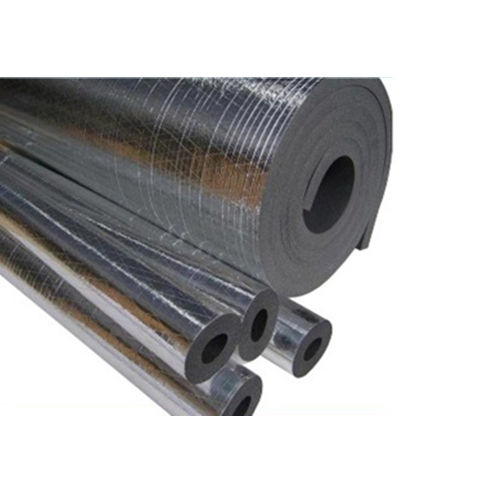

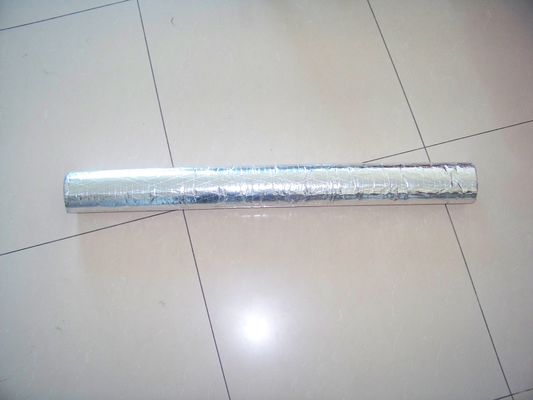

Engineered with advanced fire-resistant additives, this rubber insulation pipe meets stringent safety standards including GB/T 8624 and BS476. It features a high oxygen index (≥40%) and low smoke density, ensuring safety in case of fire. Its excellent thermal stability and anti-aging properties make it perfect for insulating hot and cold water pipes in commercial buildings, hospitals, and schools. Easy to install and maintain, it provides long-term reliability and peace of mind.
Item | Unit | Specification | Standard | |
---|---|---|---|---|
Density | Kg/m3 | 40~90 | GB/T 6343 | |
Temperature | ℃ | -50~110 | GB/T 17794 | |
Flammability | —— | B | GB/T 8624-2006 | |
B1 | ||||
Oxy gen index | % | ≥40 | GB/T 2406 | |
SDR | ≤65 | GB 8627-1999 | ||
Conductivity factor Average temperature -20℃ 0℃ 40℃ |
W/(m·k) | ≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 | |
Water vapor permeability | Factor | —— | ≥1.0*104 | GB/T 17146-1997 |
coefficient | g/(m.s.pa) | ≤1.96*10-11 | ||
Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 | |
Dimension stability 105±3℃,7d |
% | ≤10 | GB/T 8811 | |
Crack resistance | N/cm | ≥2.5 | GB/T 10808 | |
Compression resilience ratio | % | ≥70 | GB/T 6669 | |
Anti-ozone | —— | Not cracking | GB/T 7762 | |
Agin resistance | —— | Slightly crumpling,no cracks,no pin holes,not deforming | GB/T 16259 |
Tube inner diameter (mm) | 9mm thick (1.8m/piece) |
15mm thick (2m/piece) |
20mm thick (2m/piece) |
25mm thick (2m/piece) |
|||||
---|---|---|---|---|---|---|---|---|---|
Size (mm*mm) |
Piece | Piece/box | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | |
6 | 6*9 | 180 | 180 | ||||||
10 | 10*9 | 140 | 140 | 10*15 | 80 | 10*20 | 70 | ||
13 | 13*9 | 120 | 100 | 13*15 | 80 | 13*20 | 50 | ||
16 | 16*9 | 100 | 95 | 16*15 | 60 | 16*20 | 50 | ||
19 | 19*9 | 100 | 80 | 19*15 | 60 | 19*20 | 40 | ||
22 | 22*9 | 100 | 70 | 22*15 | 60 | 22*20 | 40 | 22*25 | 30 |
25 | 25*9 | 80 | 55 | 25*15 | 60 | 25*20 | 30 | 25*25 | 25 |
28 | 28*9 | 60 | 50 | 28*15 | 50 | 28*20 | 30 | 28*25 | 25 |
32 | 32*9 | 60 | 45 | ||||||
34 | 34*15 | 40 | 34*20 | 30 | 34*25 | 25 | |||
35 | 35*9 | 60 | 40 | ||||||
38*9 | 50 | 30 | |||||||
42 | 42*9 | 50 | 30 | ||||||
43 | 43*9 | 50 | 30 | 43*15 | 30 | 43*20 | 25 | 43*25 | 20 |
48 | 48*9 | 50 | 28 | 48*15 | 30 | 48*20 | 25 | 48*25 | 20 |
54 | 54*9 | 50 | 25 | ||||||
60 | 60*9 | 50 | 20 | 60*15 | 30 | 60*20 | 20 | 60*25 | 15 |
76 | 76*15 | 25 | 76*20 | 15 | 76*25 | 15 | |||
89 | 89*20 | 15 | 89*25 | 15 | |||||
108 | 108*20 | 15 | 108*25 | 10 |
Packing
Note: OEM is acceptable
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order.
Q4: What is your advantage on rubber insulation pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
