Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: FANRYN
প্যাকেজিং বিবরণ: প্লাস্টিক ব্যাগ
ডেলিভারি সময়: 10 কাজের দিন
পরিশোধের শর্ত: টি/টি
বিস্তারিত তথ্য
শব্দ শোষণ: 0.95 NRC মাত্রা: কাস্টমাইজযোগ্য
তাপমাত্রা পরিসীমা: -200°C থেকে 650°C আবেদন: বিল্ডিং ইনসুলেশন
ঘনত্ব: 10-100 কেজি/এম 3 উপাদান: খনিজ উল
তাপ পরিবাহিতা: 0.035 ডাব্লু/এমকে রঙ: হালকা হলুদ
আগুন প্রতিরোধের: ক্লাস এ 1 টাইপ: তাপ নিরোধক
প্রসার্য শক্তি: 40-150 kPa পরিবেশগত প্রভাব: কম কার্বন পদচিহ্ন
সংবেদনশীল শক্তি: 40-150 kPa আর্দ্রতা শোষণ: <1%
বিশেষভাবে তুলে ধরা:

non-combustible pipe fire protection

,

A1 fireproof mineral wool

,

thermal insulation for pipes


পণ্যের বর্ণনা

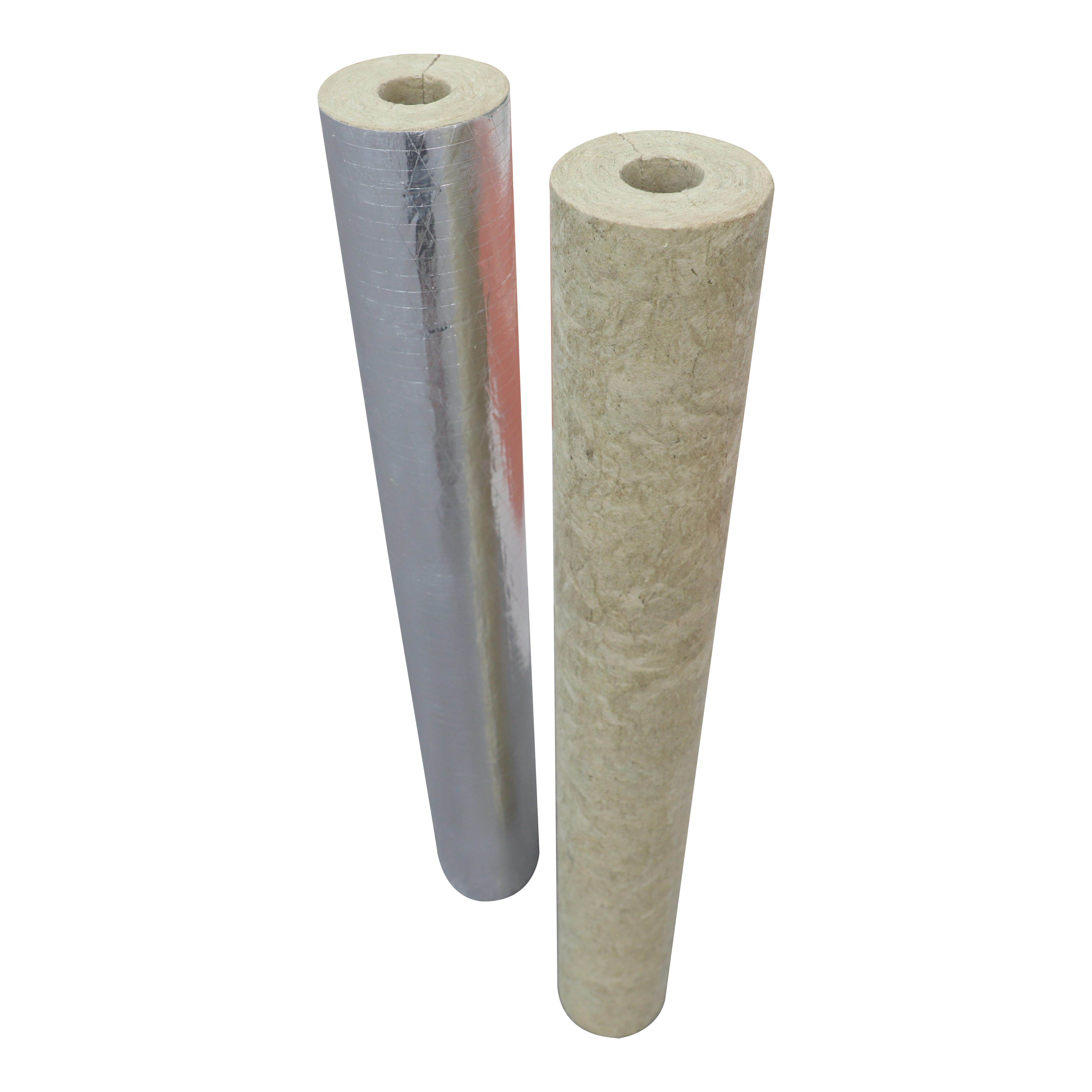

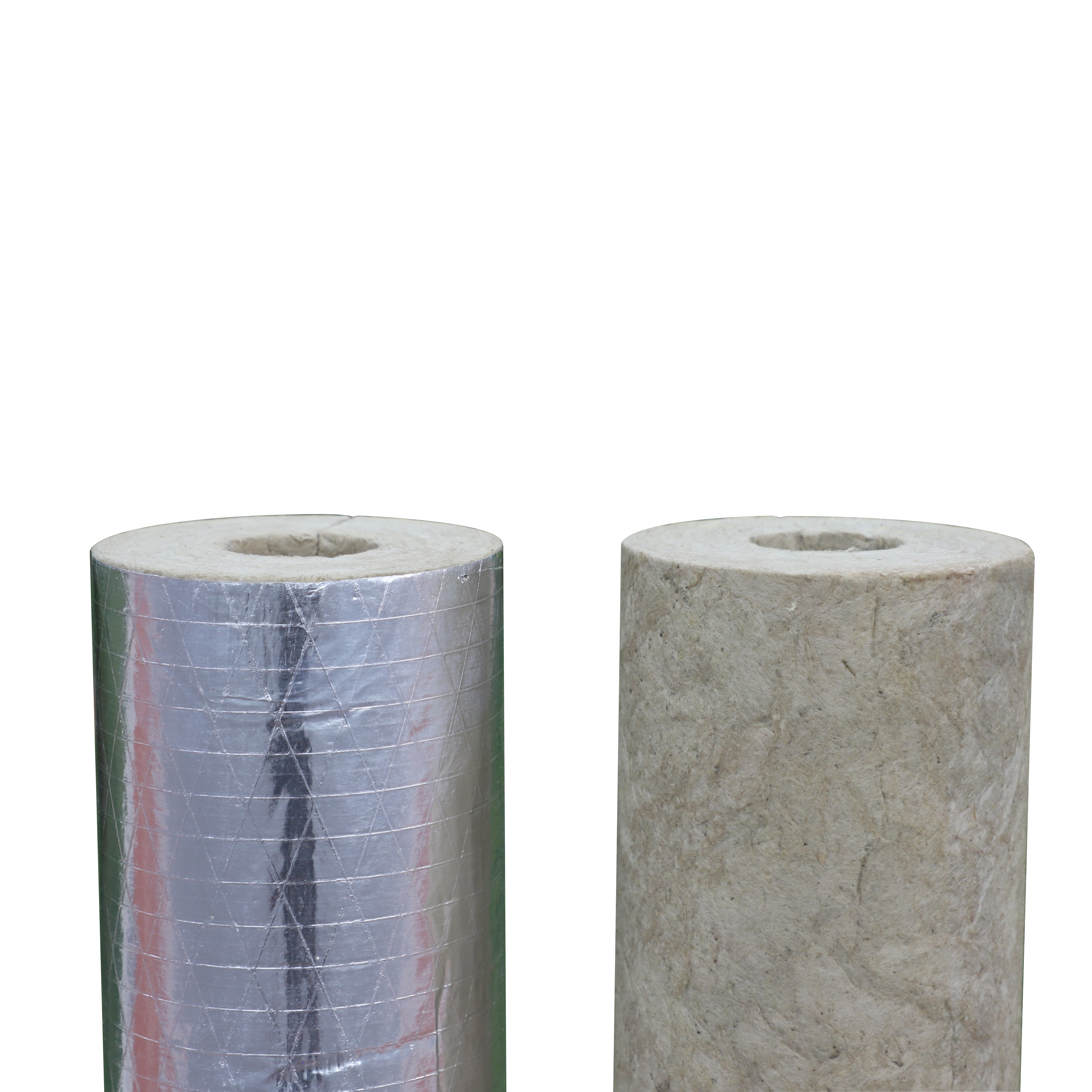

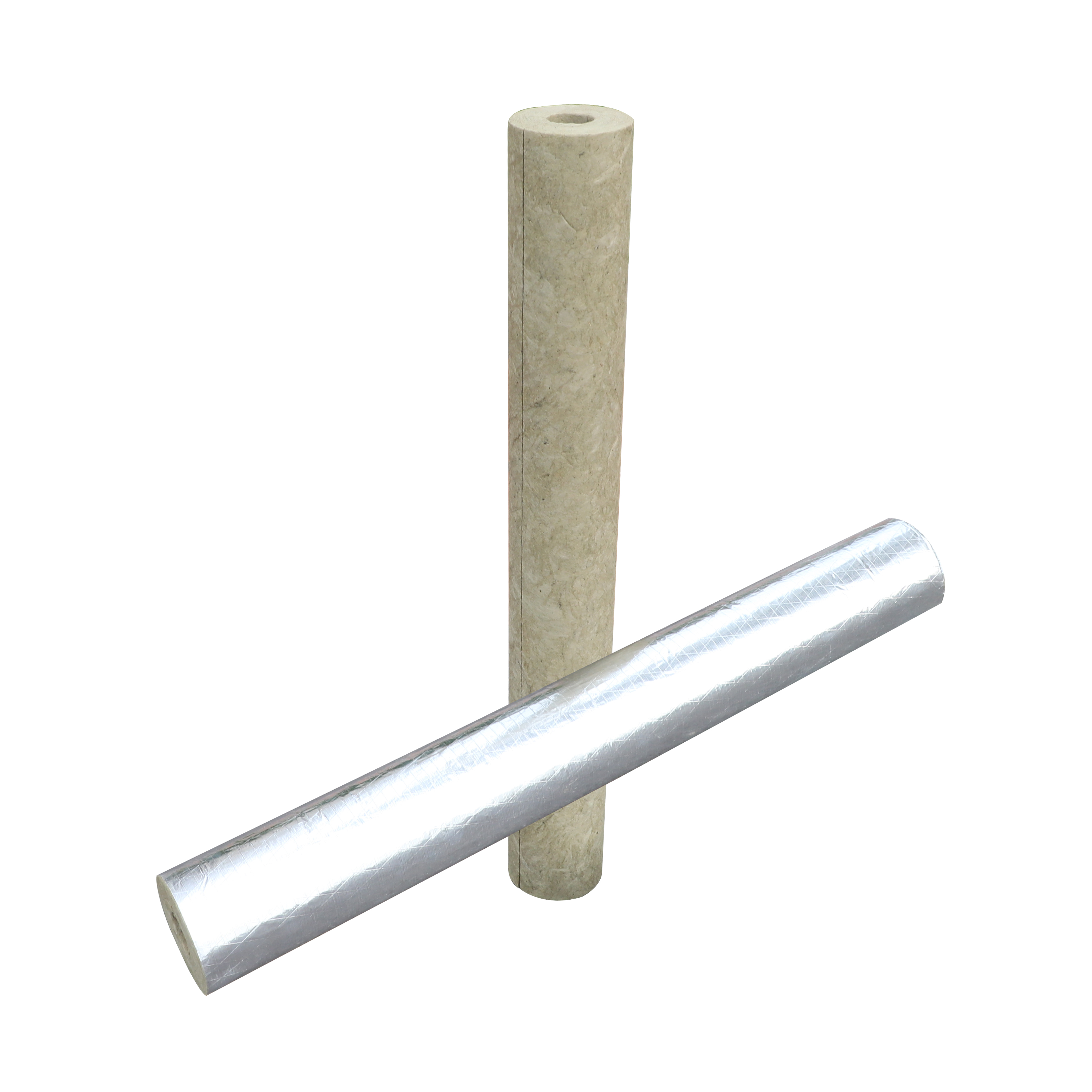

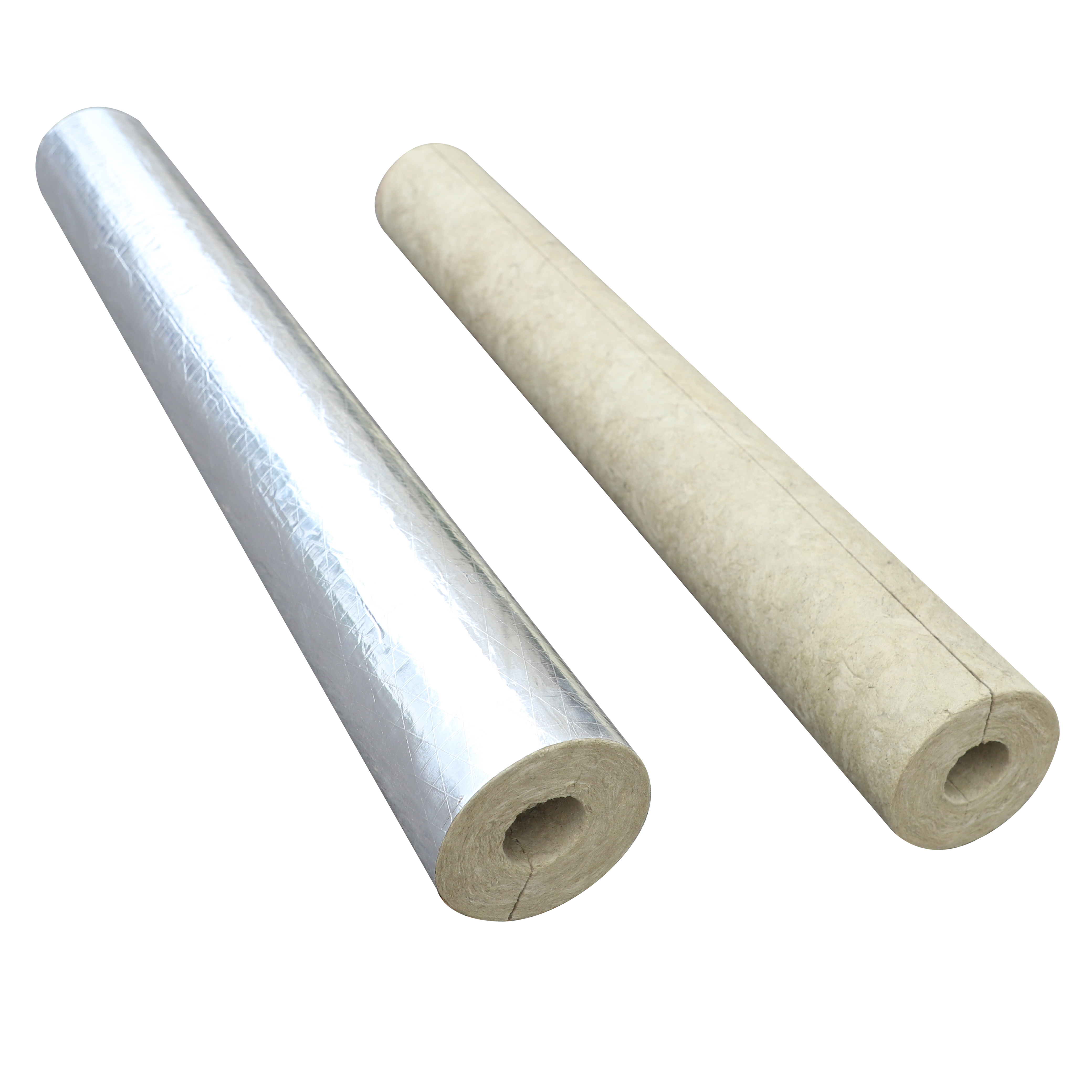

Rock Wool Pipe
Product introduction of the rock wool pipe

In any facility, pipe systems can become conduits for fire. FANRYN Rock Wool Pipe is specifically designed to be a passive fire protection solution, engineered to contain fires and protect critical infrastructure. As a product made from stone, it is inherently non-combustible.

It achieves the highest fire performance classification—Class A1 according to GB/T 8624-2006. This means it will not contribute to the fire load; it will not burn, produce flaming droplets, or release significant amounts of heat or smoke. By insulating pipes with FANRYN Rock Wool, you are installing a vital barrier that helps to:

  • Compartmentalize Fire: Prevent the spread of flames through pipe penetrations in walls and floors.

  • Protect Structural Elements: Shield supporting steelwork and adjacent materials from intense heat.

  • Maintain System Integrity: Help ensure essential services and sprinkler systems remain operational longer during a fire event.

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 0

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 1

Product parameter of the rock wool pipe

Properties

Specifications

Standards

Density Tolerance

±15%

GB/T 19686-2005

Fire Performance

Non-Combustible

GB/T 5464-1999



Reaction to fire Class A1

GB/T 8624-2006

Thermal Conductivity

 (W/mK, at70±5)

≤0.044

GB/T 10295

Fiber Diameter

7(+/-1)um

GB/T 5480. 4

Shot Content

(shot size0.25mm)

≤12%



Eccentricity of Pipe shell

≤5mm


Product size of the rock wool pipe

DIA

Thickness (mm)

inch

mm

25

30

40

50

60

70

80

90

100

120

150

1/2’’

22

















3/4’’

27









1’’

34









1-1/4’’

43





1-1/2’’

48





2’’

60





2-1/2’’

76





3’’

89





3-1/2’’

108





4’’

114



5’’

140



6’’

169



8’’

219





10’’

273





12’’

325





14’’

356







15’’

381







16’’

406







18’’

456







19’’

483











20’’

508











22’’

558













24’’

610













Product feature of the rock wool pipe
  • Class A1 Rating: The highest possible classification for non-combustibility.

  • Inherently Fire-Resistant: Made from stone, it cannot burn.

  • Passive Fire Protection: Works 24/7 without the need for activation or maintenance.

Product application of the rock wool pipe

Insulation and fireproof of huge projects like power plant, oil depot and petrochemical works.

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 2

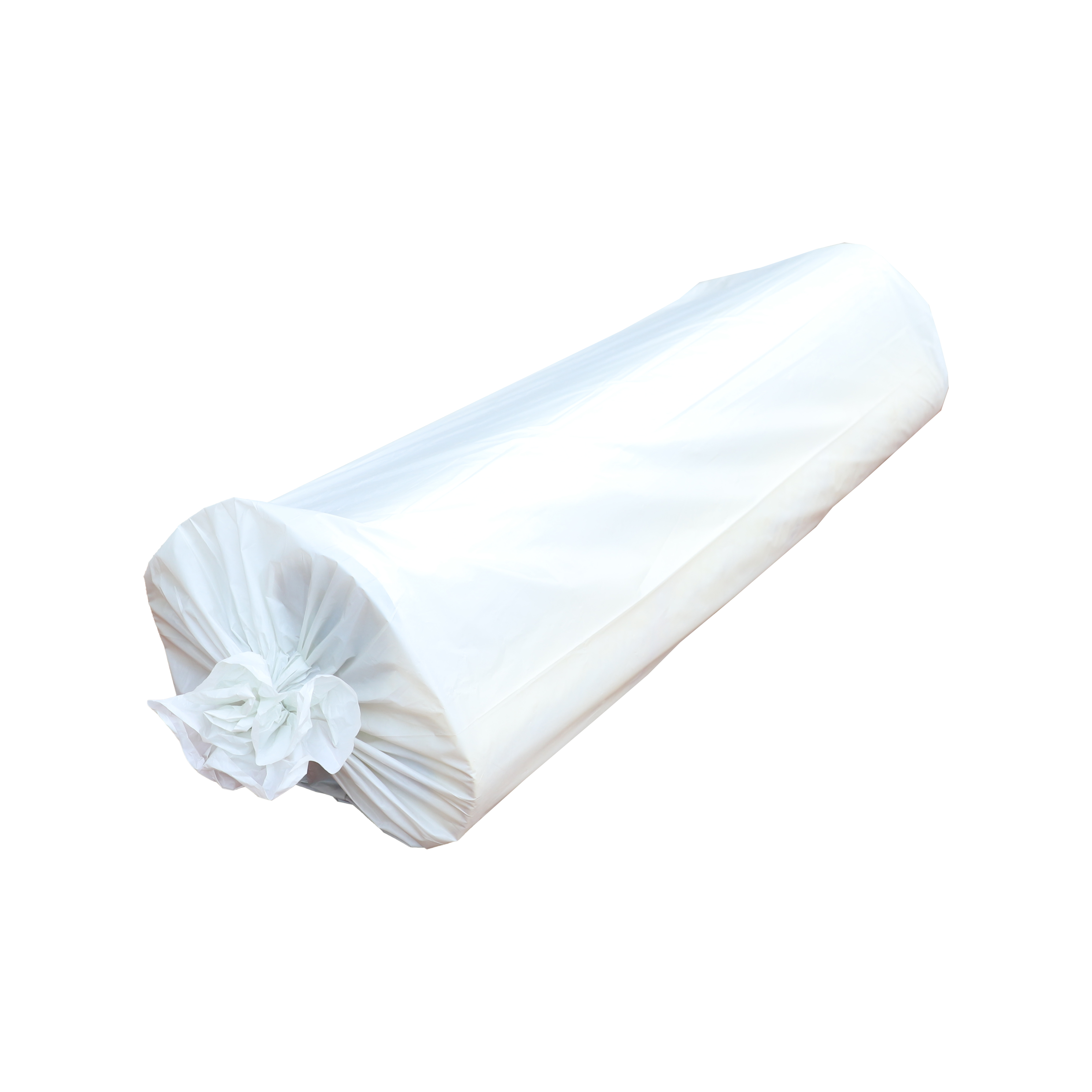

Production packing of the rock wool pipe

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 3                     Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 4

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order.

Q4: What is your advantage on rock wool pipe?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
