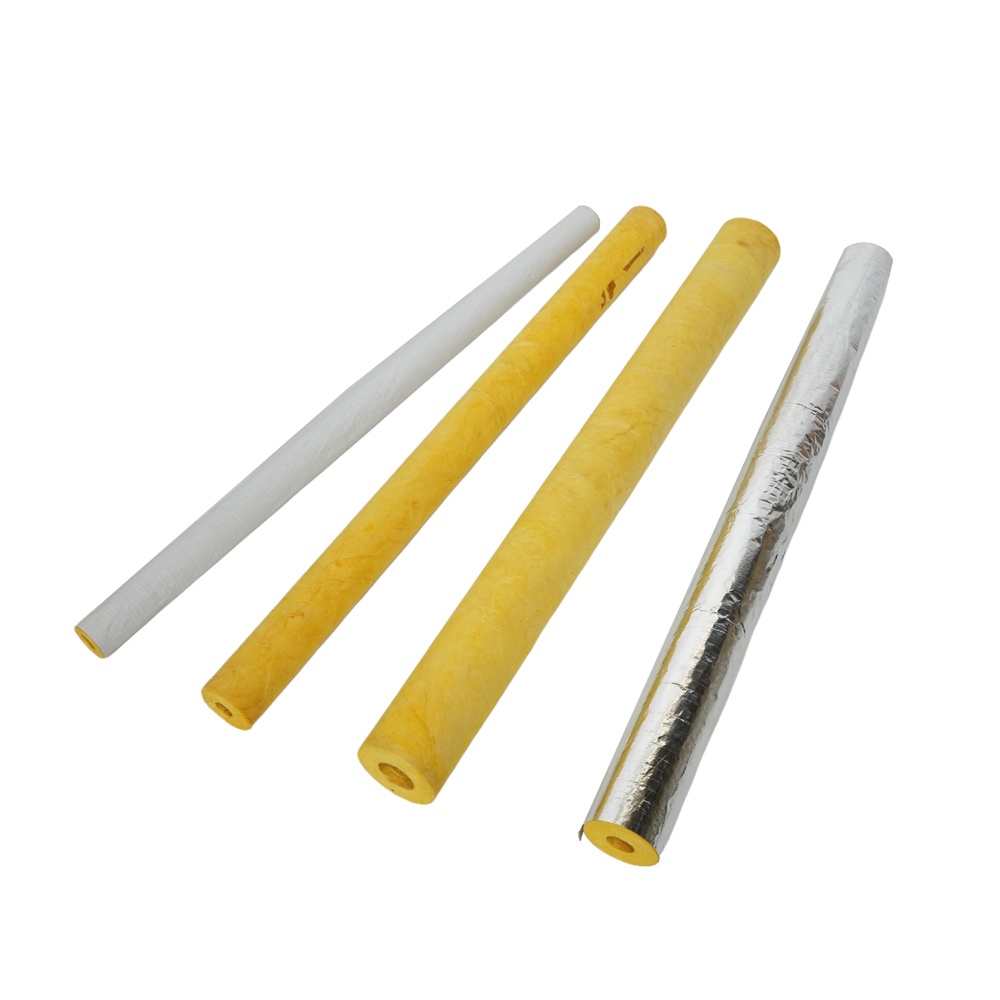

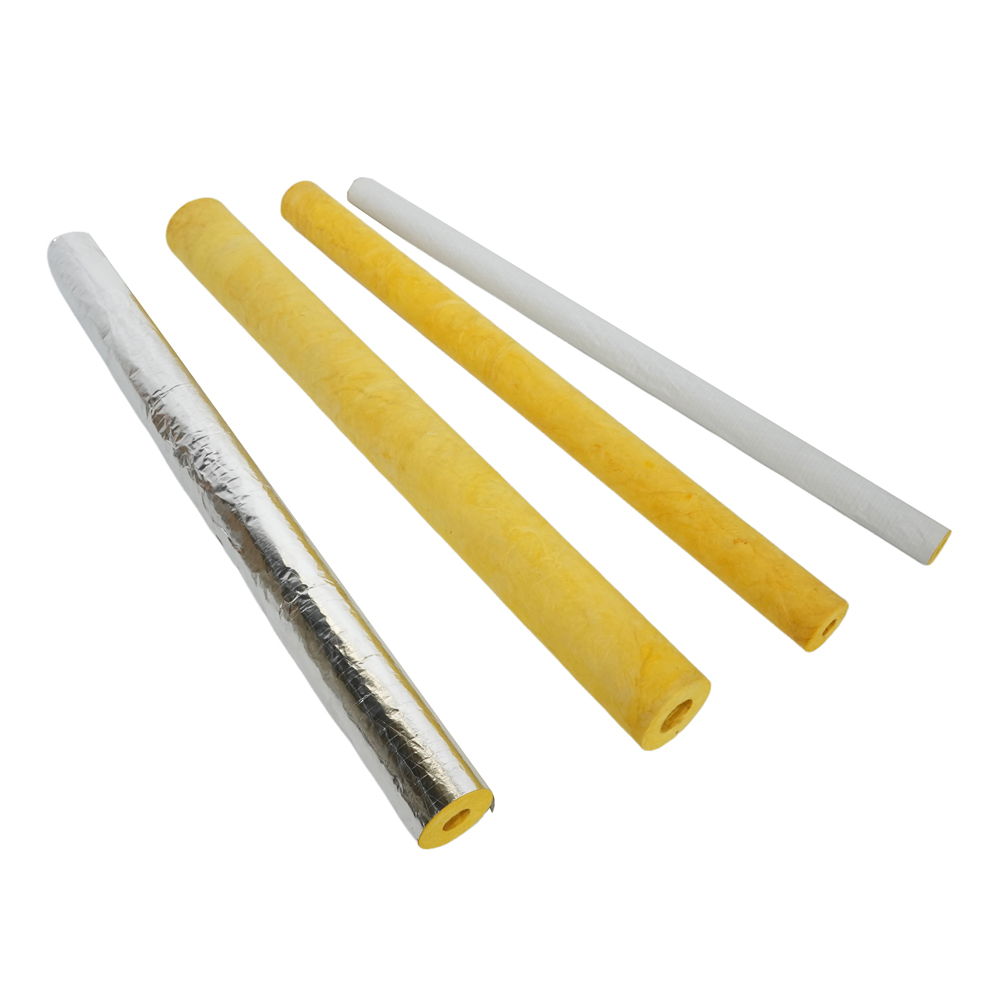

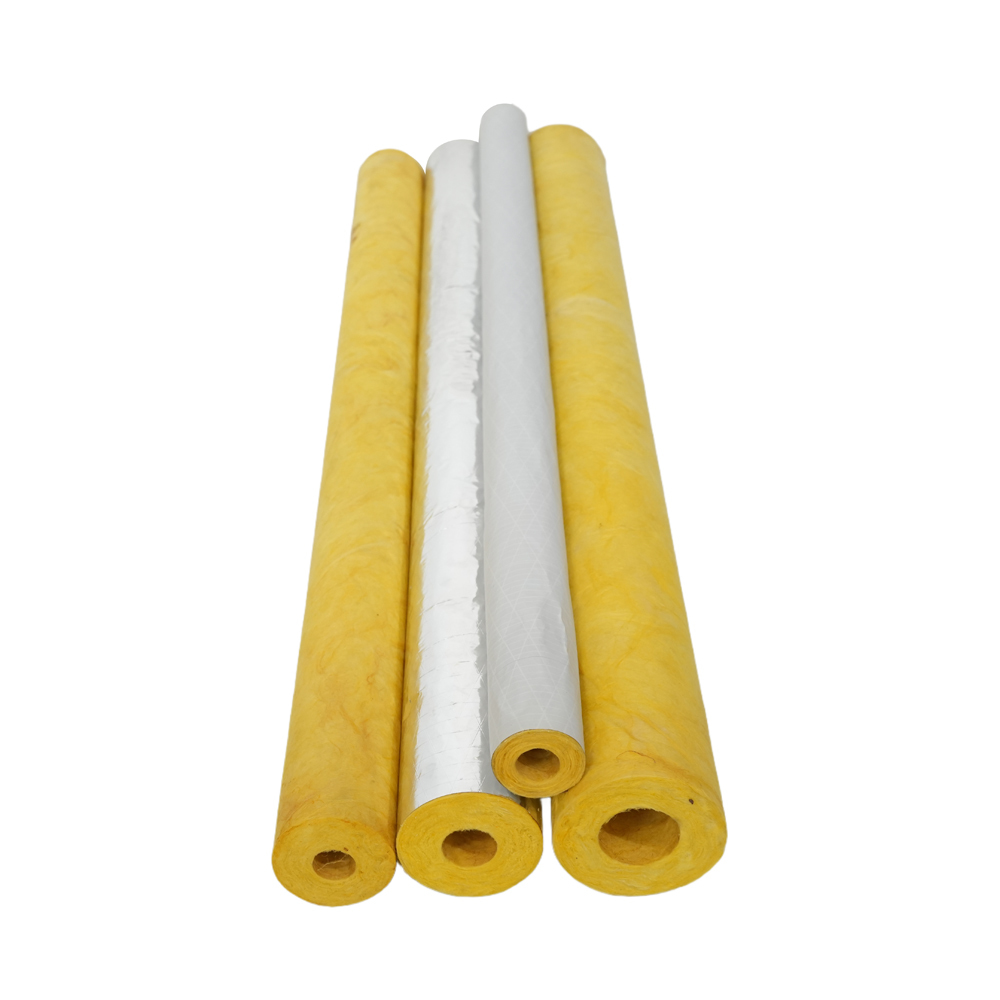

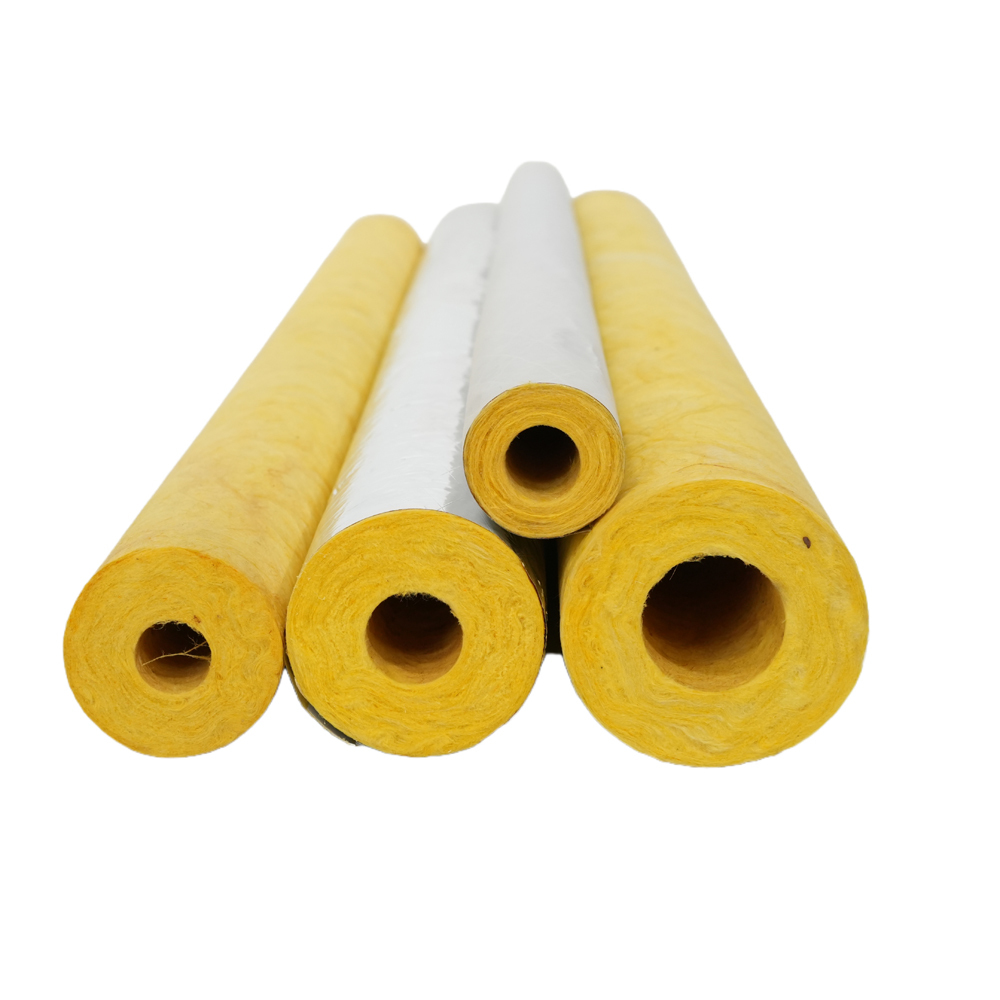

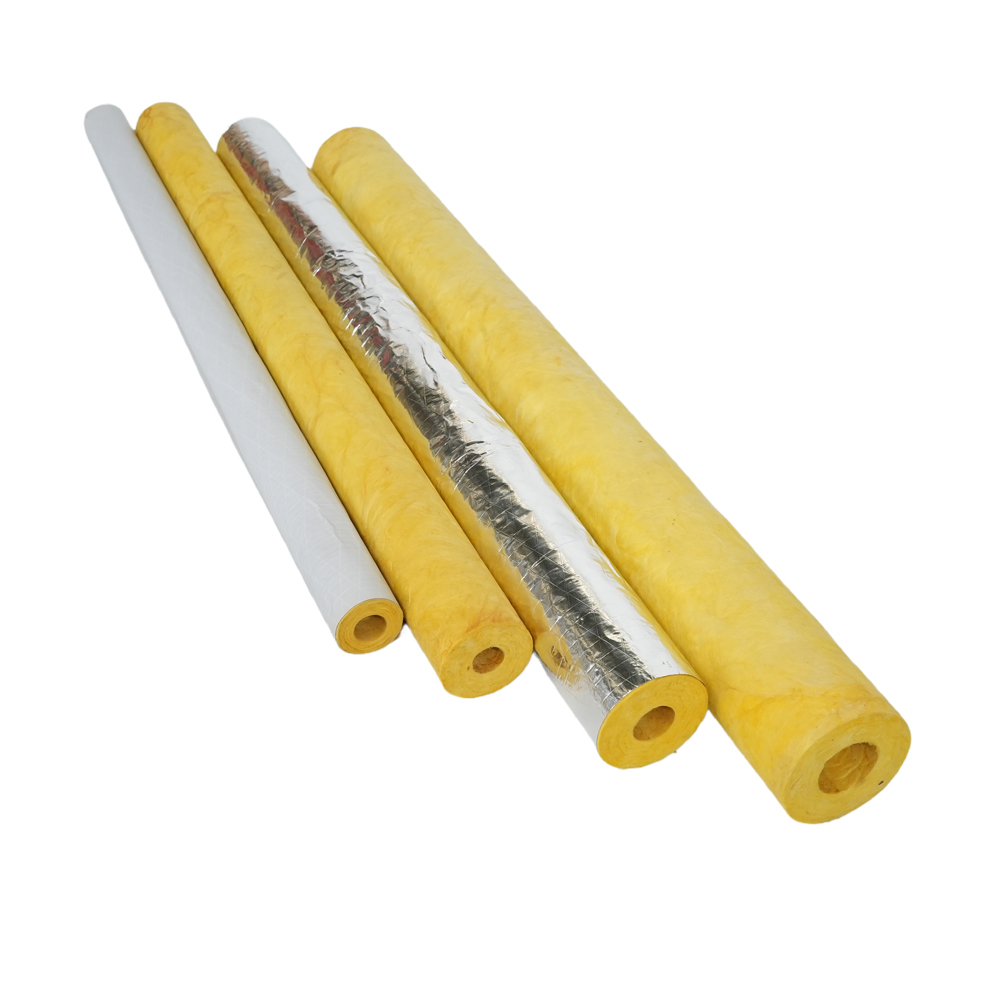

Product introduction of the glass wool pipe
Optimize your building's climate control and acoustic comfort with our high-performance Glass Wool Pipe Sections. Specifically engineered for HVAC and ventilation systems, this insulation solution effectively minimizes heat loss or gain in air ducts, ensuring energy-efficient temperature management. Simultaneously, its superior sound-absorbing properties dampen noise from air movement and equipment, contributing to a quieter, more comfortable indoor environment. Easy to handle and install, it's the ideal choice for insulating complex ductwork in both commercial and residential buildings.
Product parameter of the glass wool pipe
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) |
|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm |
|---|
Air System Steaming and Water System High Temperature/
High Pressure System | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/
Medium Pressure System | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/
low Pressure System | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment
Temperature | Relative Humidity | System Working Temperature |
|---|
2℃ | 7℃ | 13℃ |
|---|
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 |
80% | 75 | 60 | 50 |
85% | 100 | 90 | 75 |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 |
80% | 50 | 50 | 40 |
85% | 80 | 75 | 60 |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 |
85% | 75 | 65 | 50 |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 |
85% | 75 | 50 | 40 |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Product feature and application of the glass wool pipe
Dual-Action Performance: Provides excellent thermal insulation to reduce energy costs and acoustic insulation to lower operational noise.
Wide Temperature Range: Stable performance in temperatures from -85°C to 454°C, suitable for various air handling scenarios.
Lightweight & Flexible: Simplifies installation around elbows, tees, and joints, reducing labor time and cost.
Non-Combustible: Enhances the overall fire safety of the ventilation system.
Production Facing of rock wool board
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
