| রাসায়নিক প্রতিরোধ: | বেশিরভাগ রাসায়নিক প্রতিরোধী | নিরোধক প্রকার: | তাপ |
|---|---|---|---|
| আগুন প্রতিরোধের: | ক্লাস 0, ক্লাস বি 1 | ঘনত্ব: | 40-90 কেজি/এম 3 |
| শব্দ শোষণ: | উচ্চ | ইনস্টলেশন পদ্ধতি: | আলগা-ফিল, ব্যাটস বা রোলস |
| আবেদন: | ছাদ, দেয়াল, মেঝে, পাইপ, নালী | পরিবেশগত প্রভাব: | পরিবেশ বান্ধব |
| স্থায়িত্ব: | দীর্ঘস্থায়ী | তাপমাত্রা পরিসীমা: | -50 ° C থেকে 110 ° C |
| আর্দ্রতা প্রতিরোধের: | জল প্রতিরোধক |

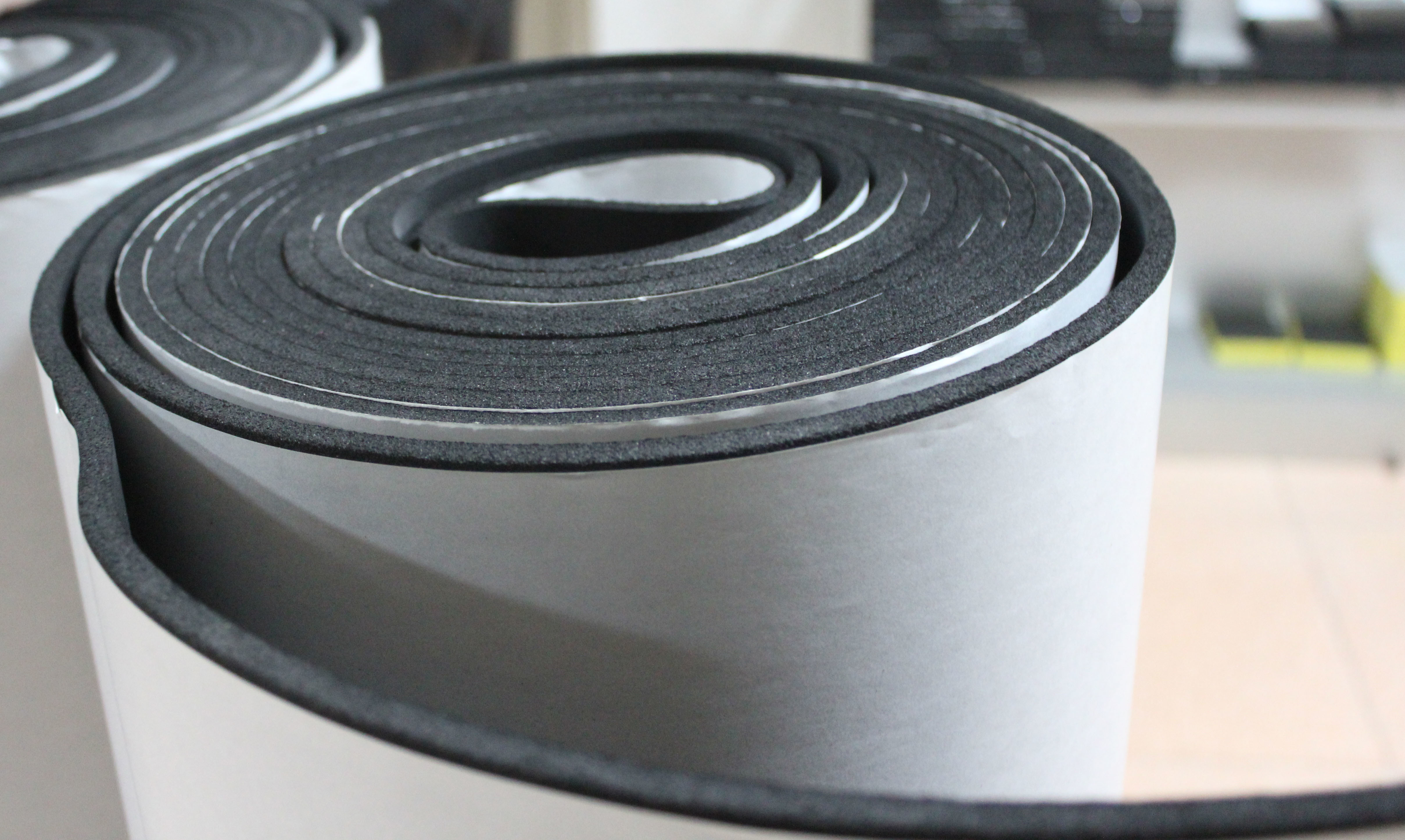

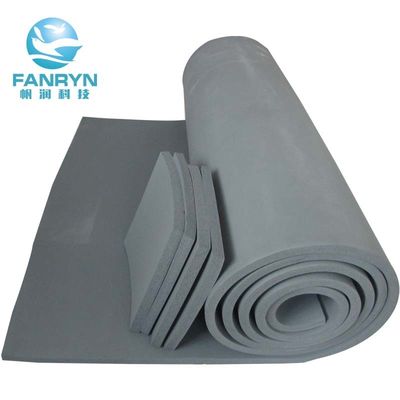

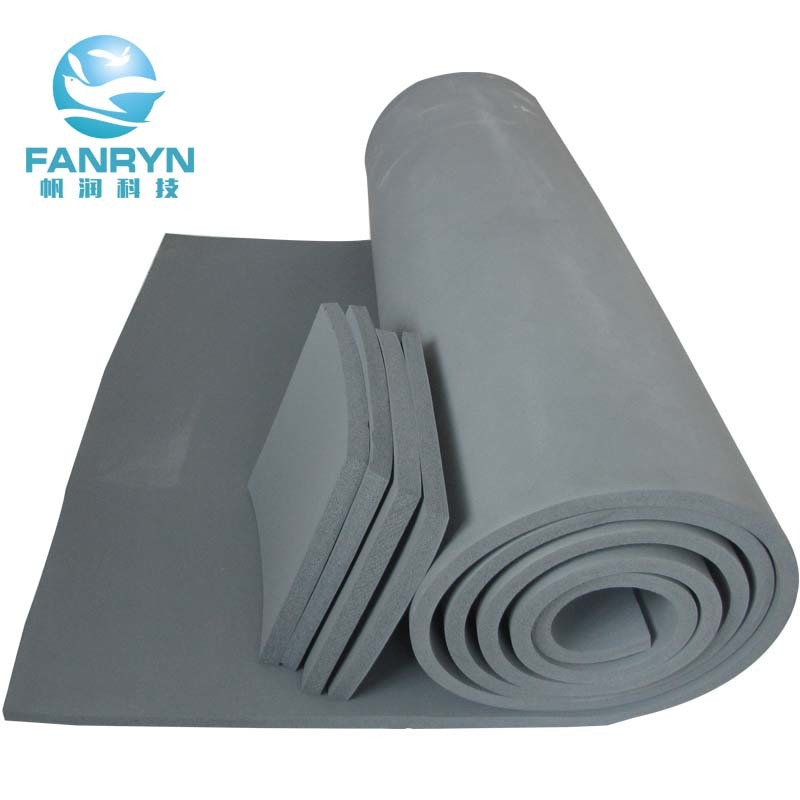

CLASS B0 Rubber Plastic Insulation Sheet
Designed for high-performance applications, the FANRYN Rubber Insulation Sheet sets a new standard in thermal insulation. It combines low thermal conductivity with superior energy efficiency and exceptional moisture resistance, guaranteeing long-term durability and measurable cost efficiency. The sheet features a standard charcoal-grey finish and incorporates advanced fire-retardant additives to ensure outstanding fire safety.
Meeting the requirements of rigorous European standards, FANRYN has gained strong international traction, with growing exports to key markets including Southeast Asia, the Middle East, Australia, and other regions worldwide.
Product Specifications
Dimensions & Tolerances
| Thickness | 10mm | 15mm | 20mm | 25mm | 30mm |
|---|---|---|---|---|---|
| Length per piece | 20m | 20m | 10m | 10m | 10m |
| Tolerance | +1.5 | +1.5 | +3.5 | +4 | +5 |
Technical Data
| Item | Unit | Specification | Standard |
|---|---|---|---|
| Density | Kg/m³ | 40~90 | GB/T 6343 |
| Temperature | ℃ | -50~110 | GB/T 17794 |
| Oxygen index | % | ≥40 | GB/T 2406 |
| SDR | ≤65 | GB 8627-1999 | |
| Water vapor permeability | Factor | ≥1.0*10⁴ | GB/T 17146-1997 |
| Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 |
| Dimension stability 105±3℃,7d | % | ≤10 | GB/T 8811 |
| Crack resistance | N/cm | ≥2.5 | GB/T 10808 |
| Compression resilience ratio | % | ≥70 | GB/T 6669 |
Applications
Maximize Building & HVAC Efficiency
Enhance air conditioning performance and cut energy costs with our specialized insulation, ideal for workshops and commercial buildings.
Optimize Industrial Processes
Achieve greater thermal stability with comprehensive insulation systems designed for temperature-critical containers and pipelines.
Control Industrial Acoustics
Reduce noise effectively with engineered sound absorption solutions for mechanical systems and demanding industrial environments.
Solve Specialized Challenges
Rely on high-performance insulation for protective gear, cleanrooms, and any application demanding precise temperature control.
Product Advantages
Maximize Energy Savings
Unlock substantial energy efficiency with ultra-low thermal conductivity that drastically reduces heat transfer.
Uncompromising Protection
Count on multi-layered reliability: superior fire resistance, built-in vibration damping, and a closed-cell structure that permanently blocks moisture.
Effortless Installation
Simplify complex projects with our flexible, easy-to-cut material that ensures a clean, professional finish every time.
